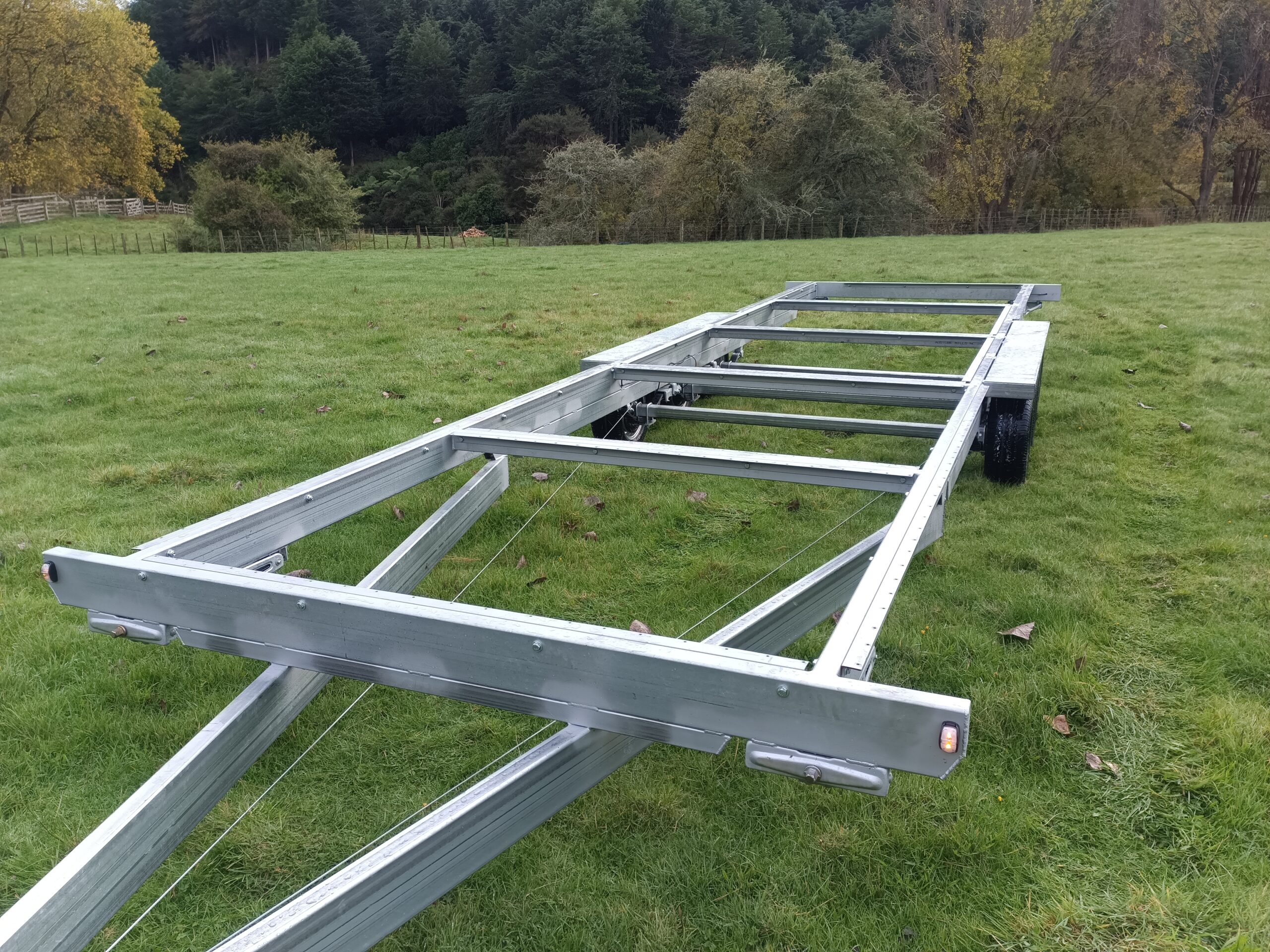

Simple and Affordable Freezer Panel Trailer

Ideal for lightweight EPS / Polypanel cabins. Why pay for more strength than needed? Built with pre-galvanized steel, a cost-effective corrosion protection system.

Buy the trailer only, or add a fixed or detachable skeleton frame to support the EPS cabin’s floor joists. Normally, these joists have three rows of bearers, on down the middle and two under the walls. This kind of floor system is not designed to be mounted on a trailer, and so they often need to be reinforced. We can provide guidance on whether your floor does or doesn’t need additional support.

Specs

Trailer:

• 580mm trailer deck height

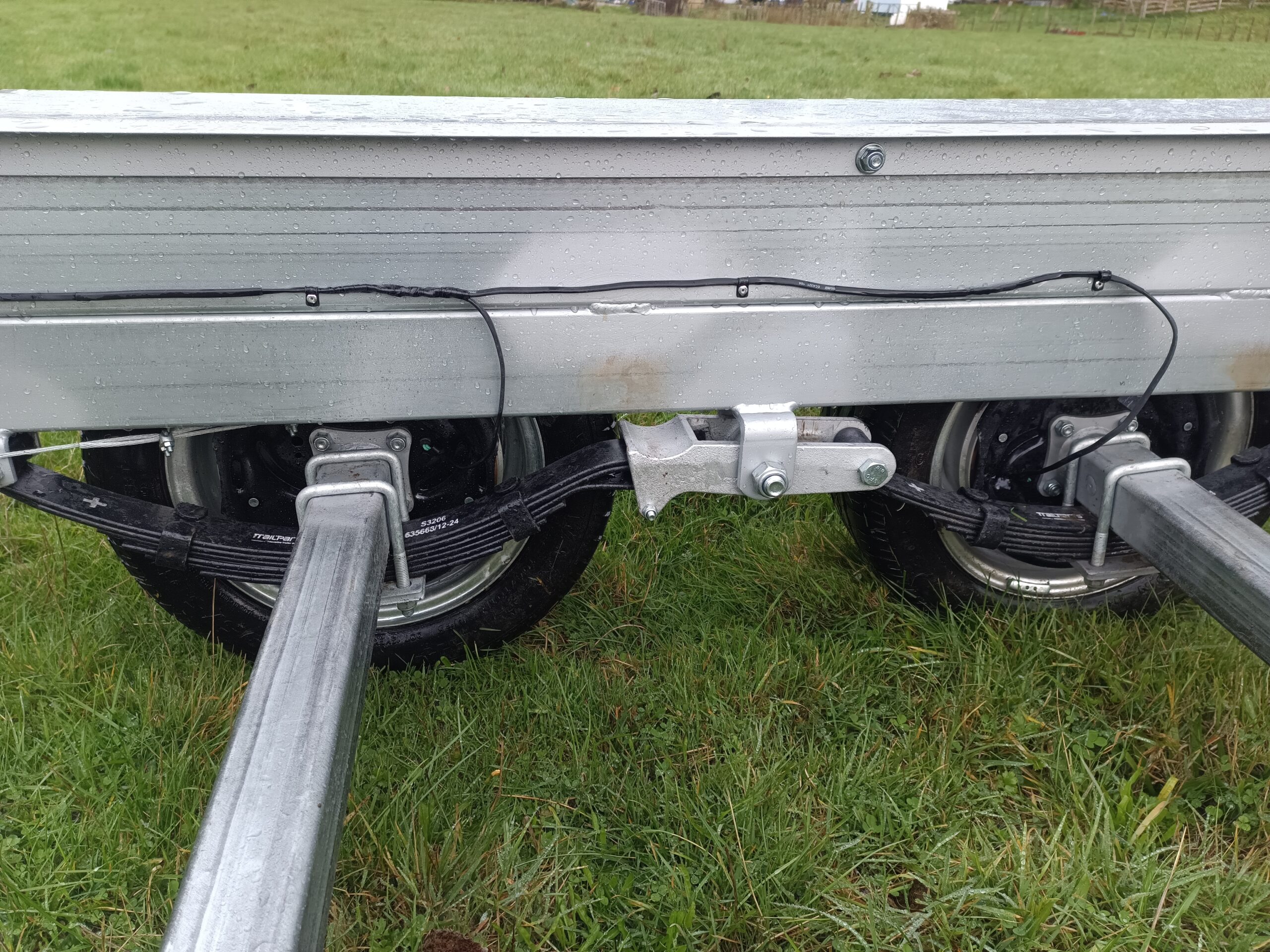

• 50x50x5mm Axles, 65x65mm on request
• 150x50x3mm Drawbar
• 150x50x4mm and 100x50x3mm chassis members

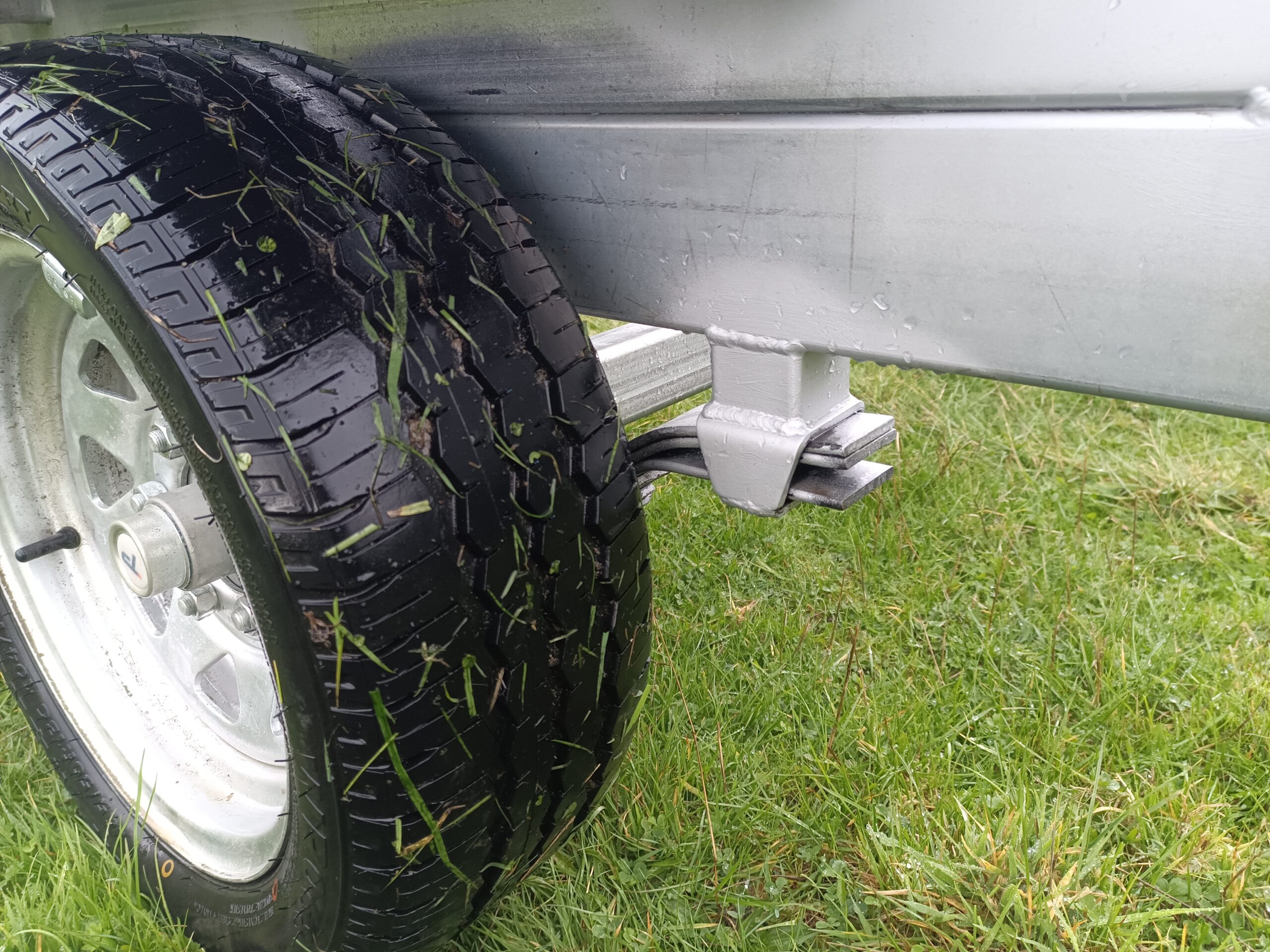

• Wheels low profile 13″, 195/50R13C, 900kg per wheel @ 93PSI

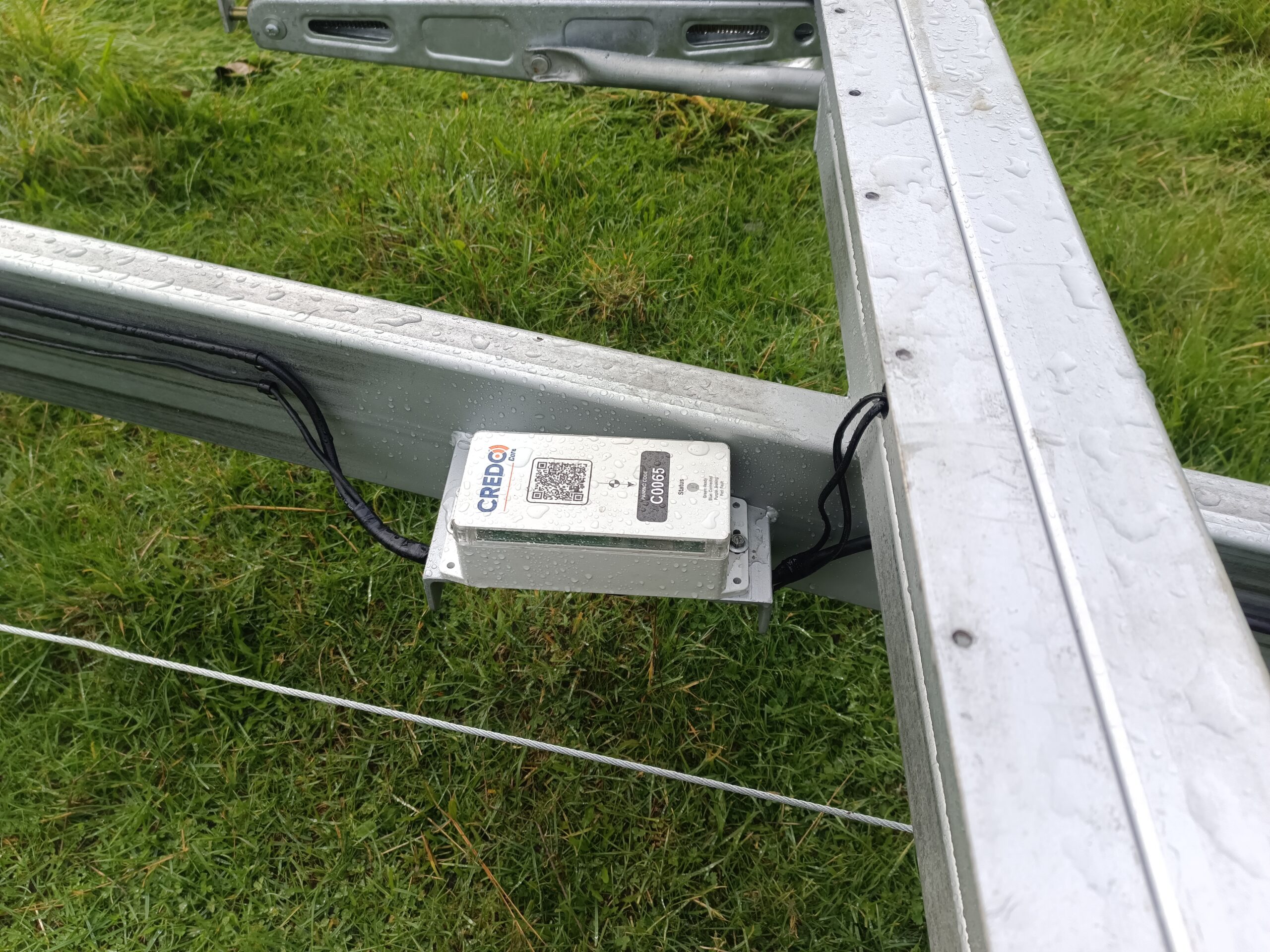

• LED Lighting System, Soldered wiring connections
• Box ends sealed to prevent internal corrosion

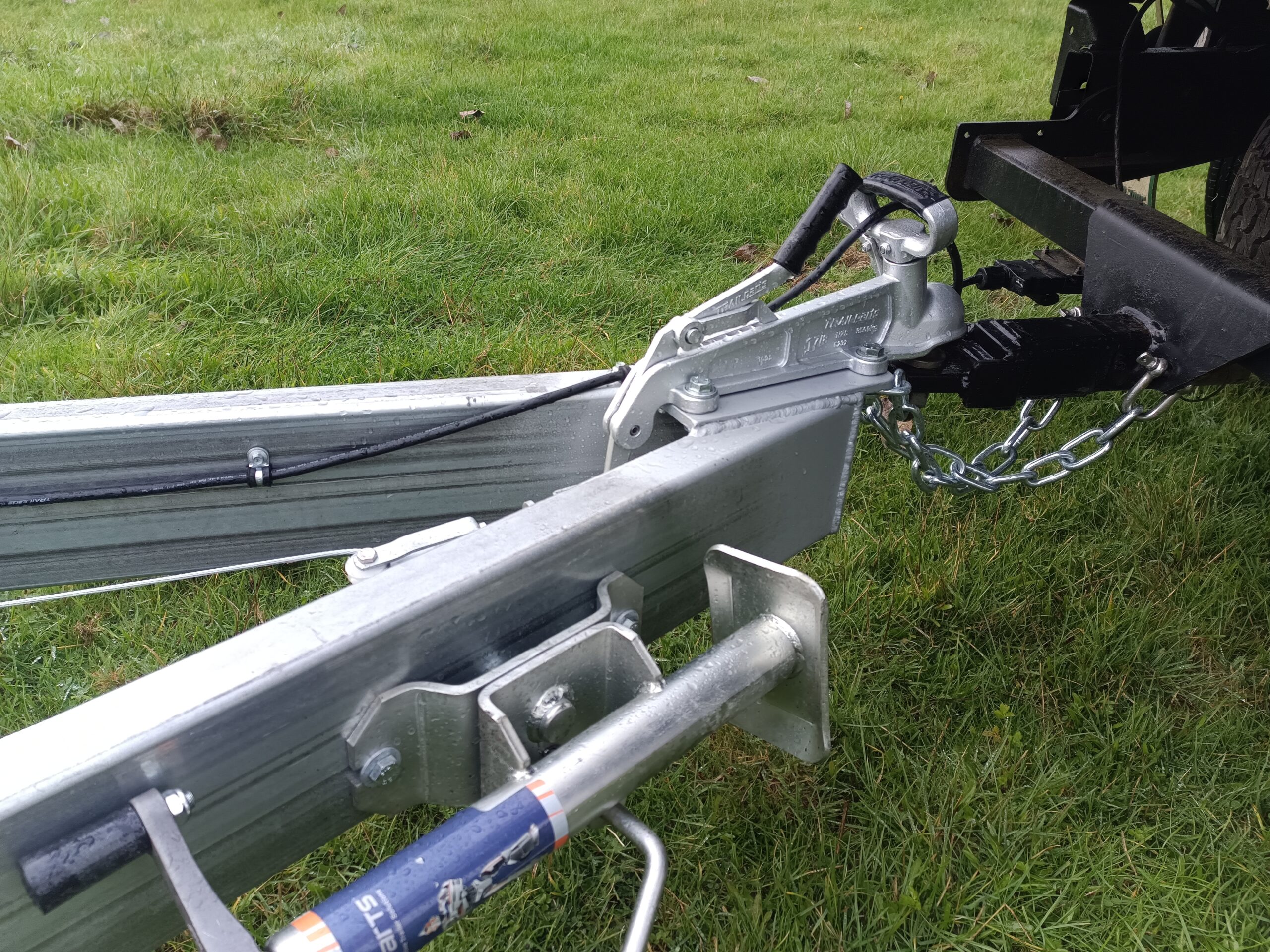

• 3500kg Coupling — 1+7/8″ standard, buyer to specify if 50mm
• Mudguards
• Duragal Construction
